Timpano’s TPT-ST71 bullet tweeter is ideal for two-way speakers and applications that require controlled directivity, high output, and smooth frequency response on high frequencies.

Its diaphragm features the latest technology on high frequency tweeters with a 1.5″ voice coil
They handle 225 watts RMS to provide continuous high output levels
High sensitivity output designed for pro audio systems

With an aluminum 40° conical dispersion horn, the bullet super tweeter is not your typical bullet tweeter. It has an average sensitivity of 108 dB and a smooth frequency response from 4,000 to 20,000 Hz using a ferrite ring magnet assembly driving an annular ring diaphragm made from mylar diaphragm.

Built In Crossover – Capacitor that acts as a crossover to attenuate low end frequencies that might otherwise harm the super tweeters.

These tweeters are capable of generating high end frequencies at extremely loud volume, to keep up in the high SPL systems. Built with high strength magnet and a mylar diaphragm are designed to reproduce the brightest and crispest sound.

Specs:
900 Watts Max Power per pair / 450 Watts each
225 Watts RMS Power each with Digital DSP
150 Watts RMS Power each with Car Audio Crossover
Impedance: 8 Ohm each tweeter
Sensitivity: 108 dB
Frequency Response: 4,000 – 20,000Hz
Mylar Diaphragm with a 1.5″ voice coil

Recommended High Pass Filter with TPT-SP4BT DSP:
7000 Hz under 225 Watts of Amplifier RMS Power with 18dB Slope
5000 Hz under *150 Watts of Amplifier RMS Power with 12dB Slope
(*Maximum power handling using a regular car audio amplifier crossover)

Sizing:
Mounting 3”
Mounting Cutout Diameter: 3.78″
Overall Size: 4″ x 4″ x 3.17″
Weight: 3 Lbs each tweeter

Accessories Included:
HPF Capacitor attached per tweeter
1x Timpano Logo Sticker

With a great price-to-performance, these tweeters provides output of professional systems without breaking the bank. Sold as a set of 2 tweeters (pair).

Original Manufacturer Replacement Recone Kit that Maintain Peak Performance are available: TPT-RPST71

New Products

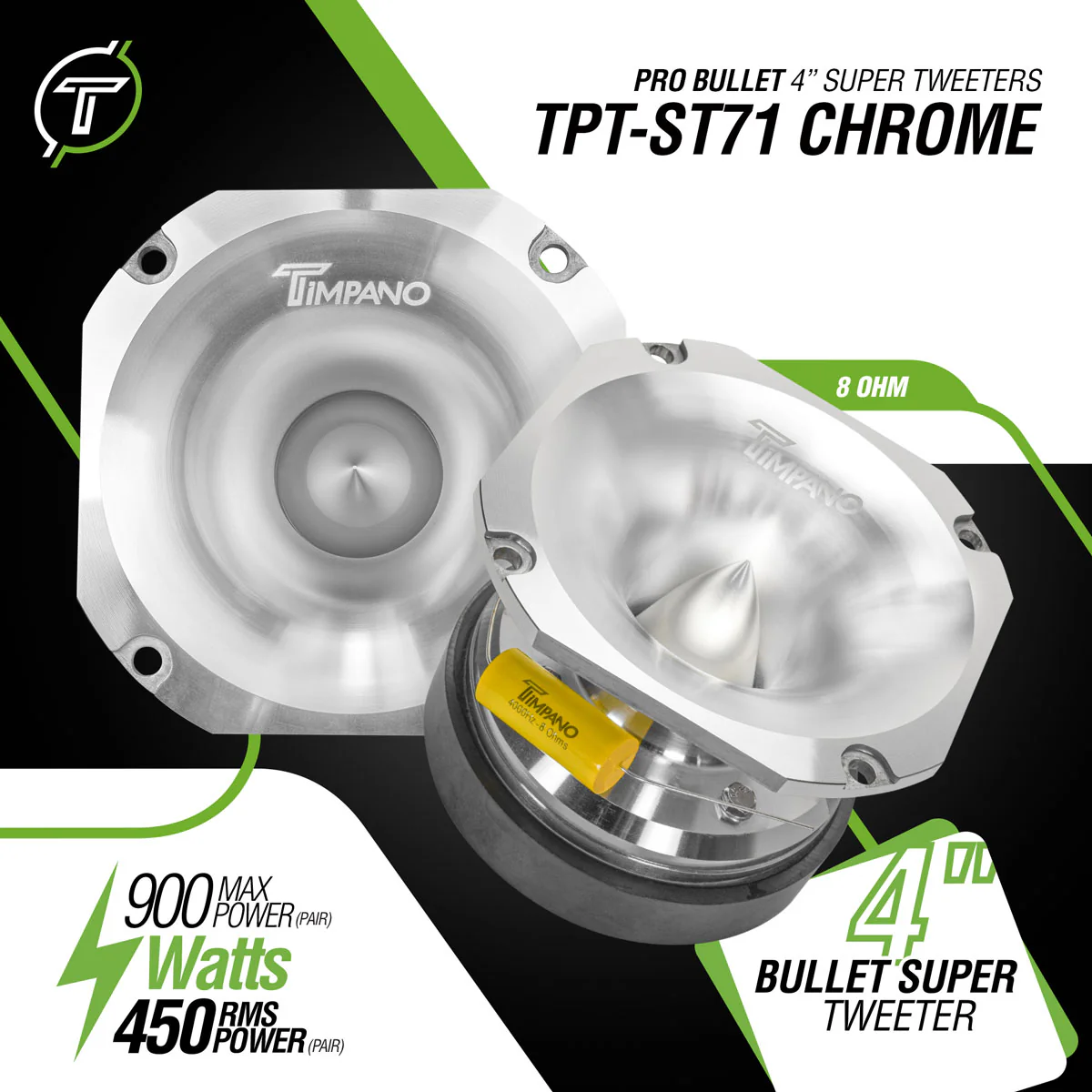

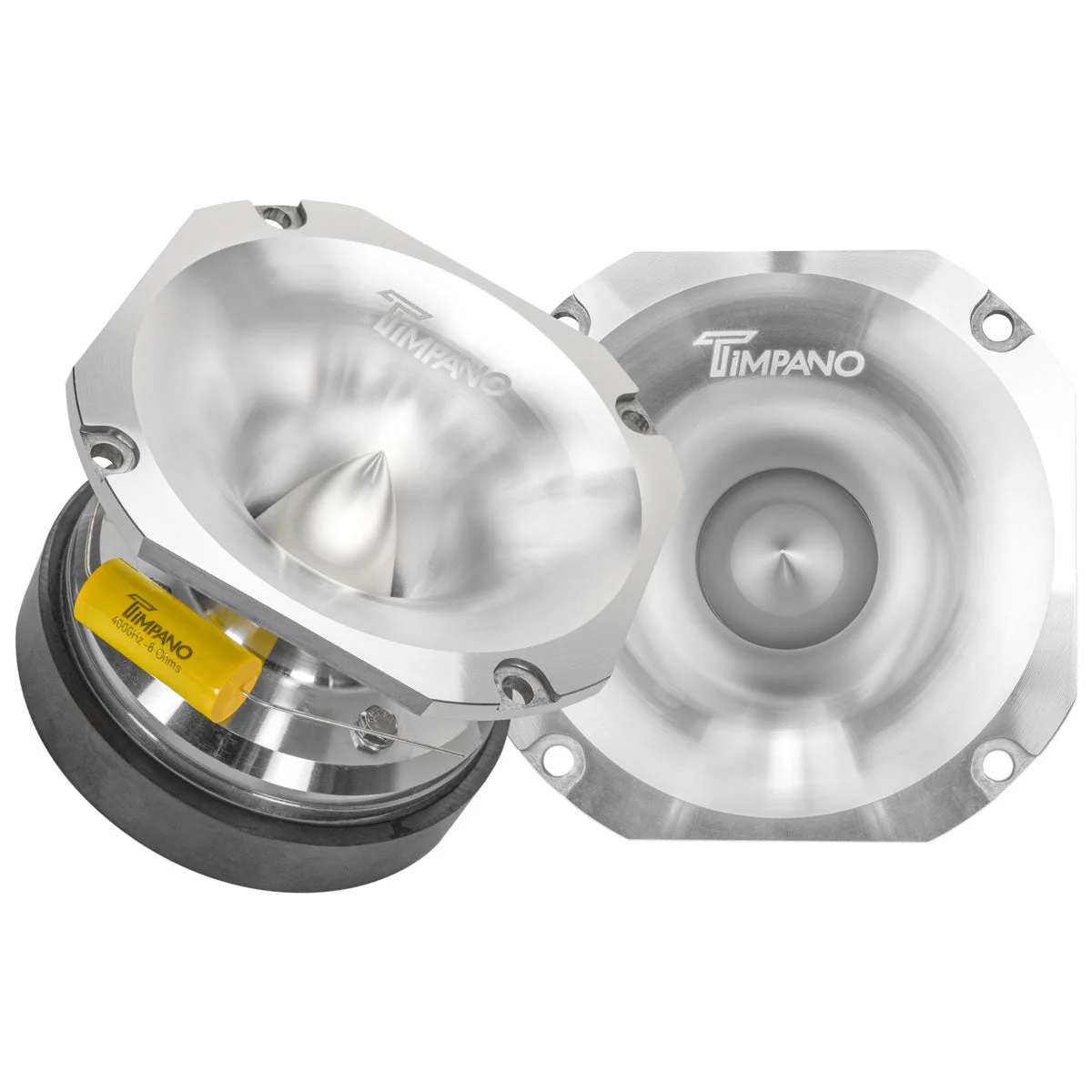

TPT-ST71 CHROME

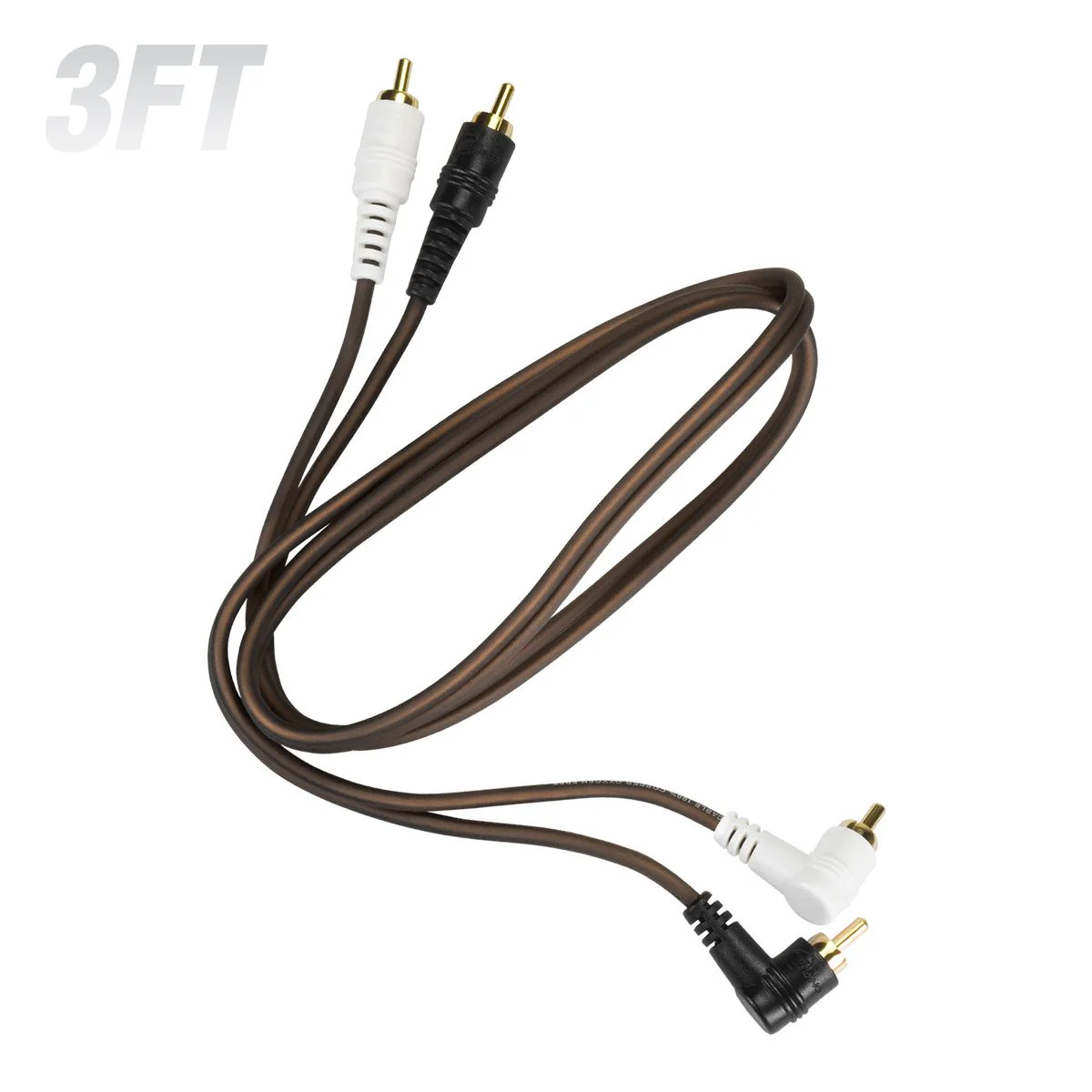

TPT-RCA X3FT

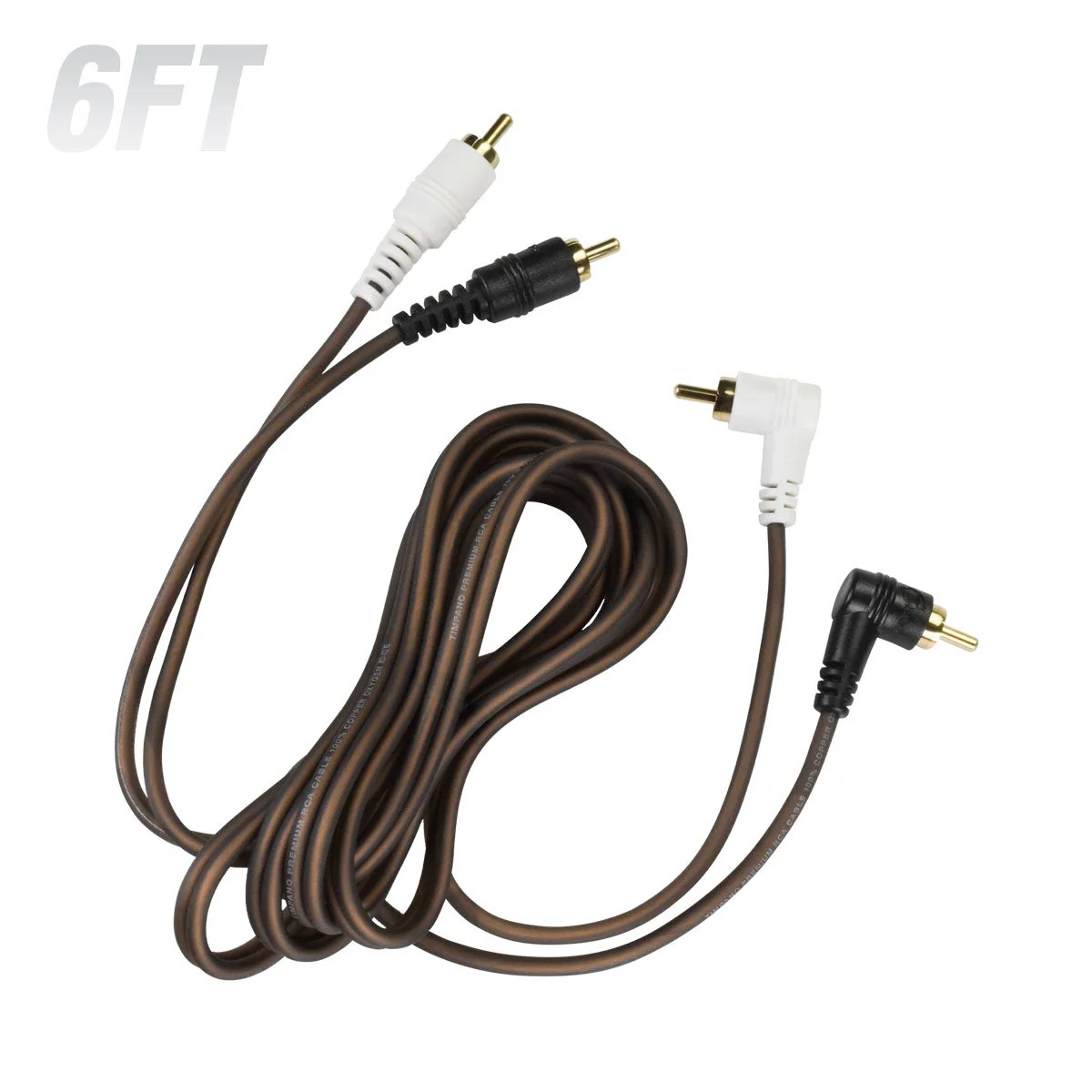

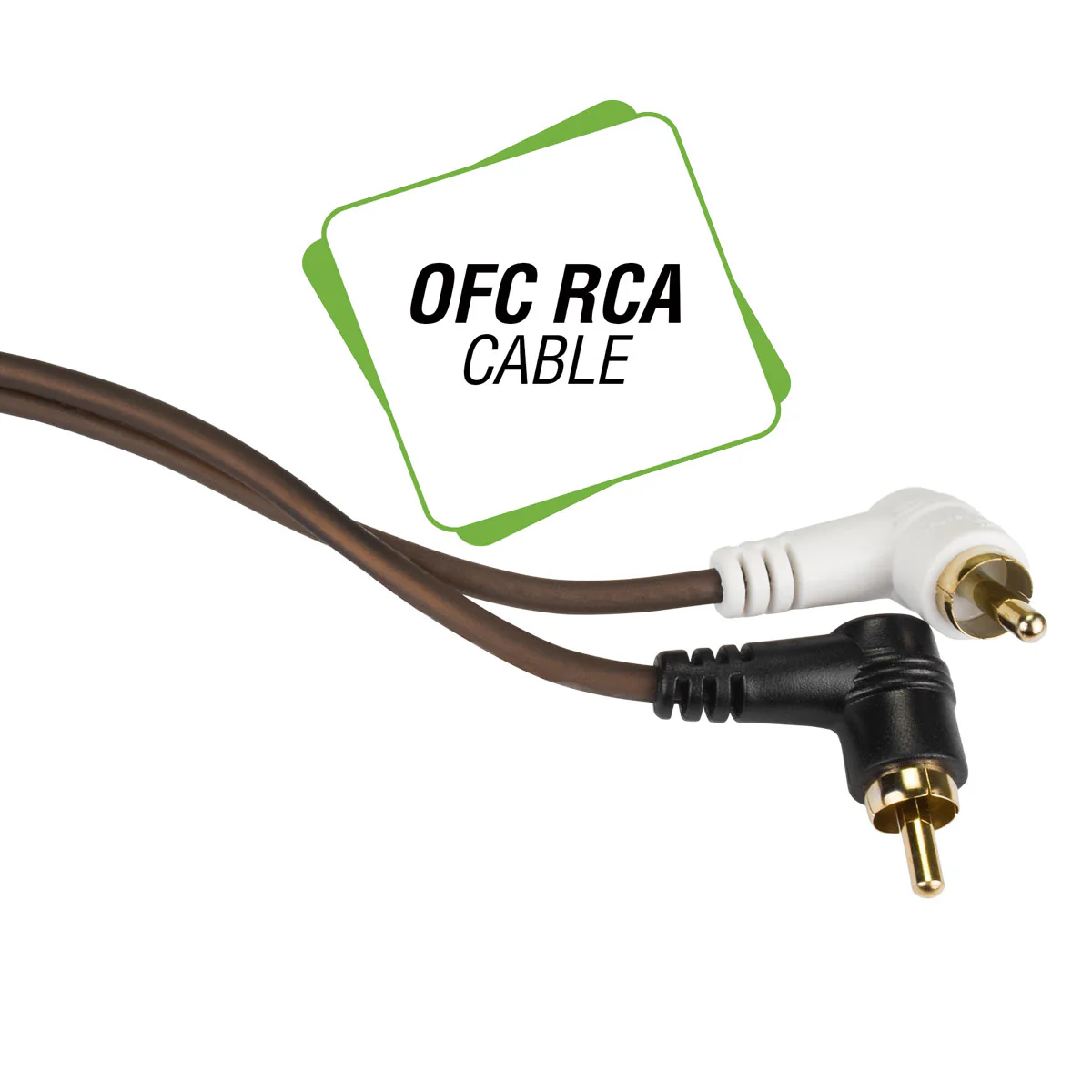

TPT-RCA X6FT

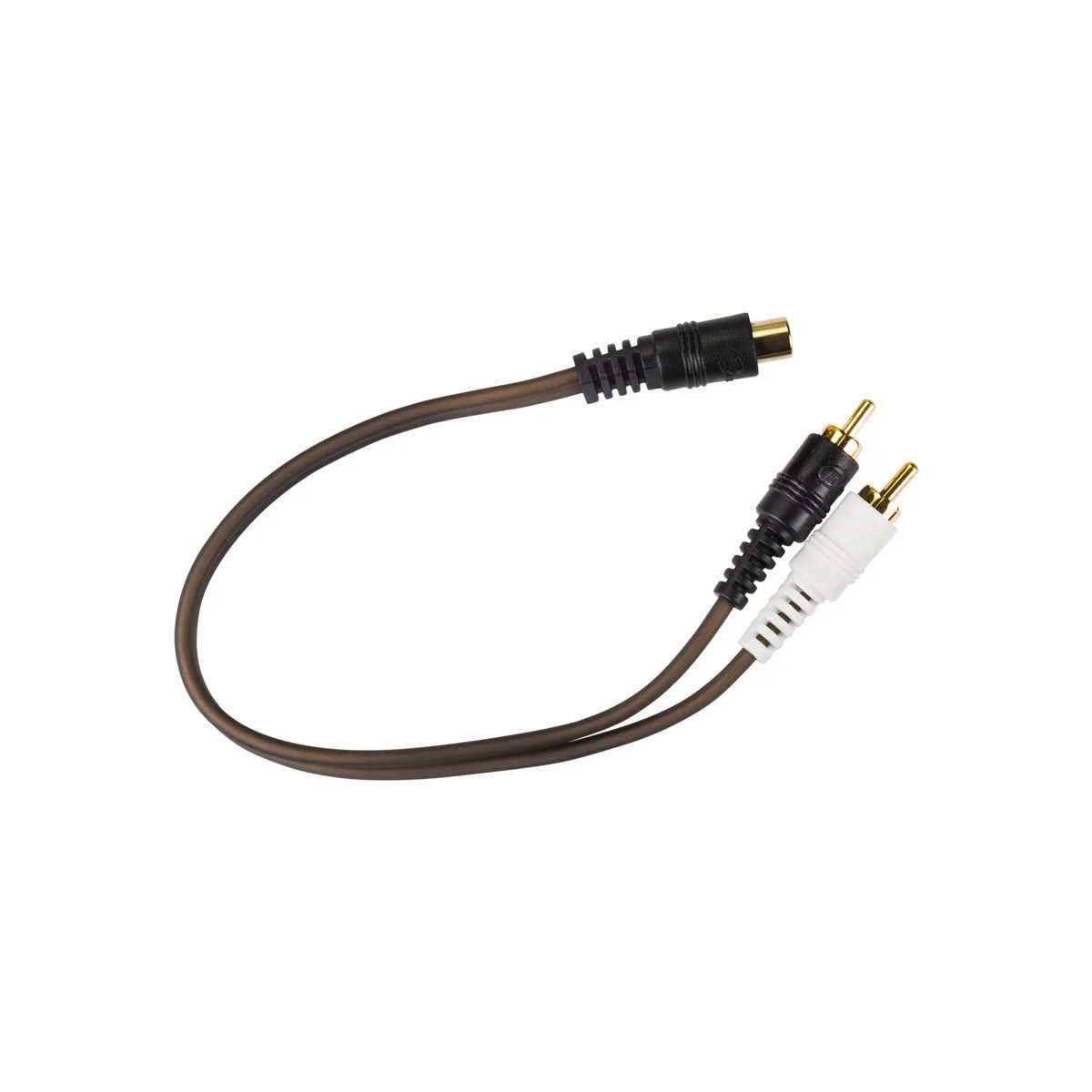

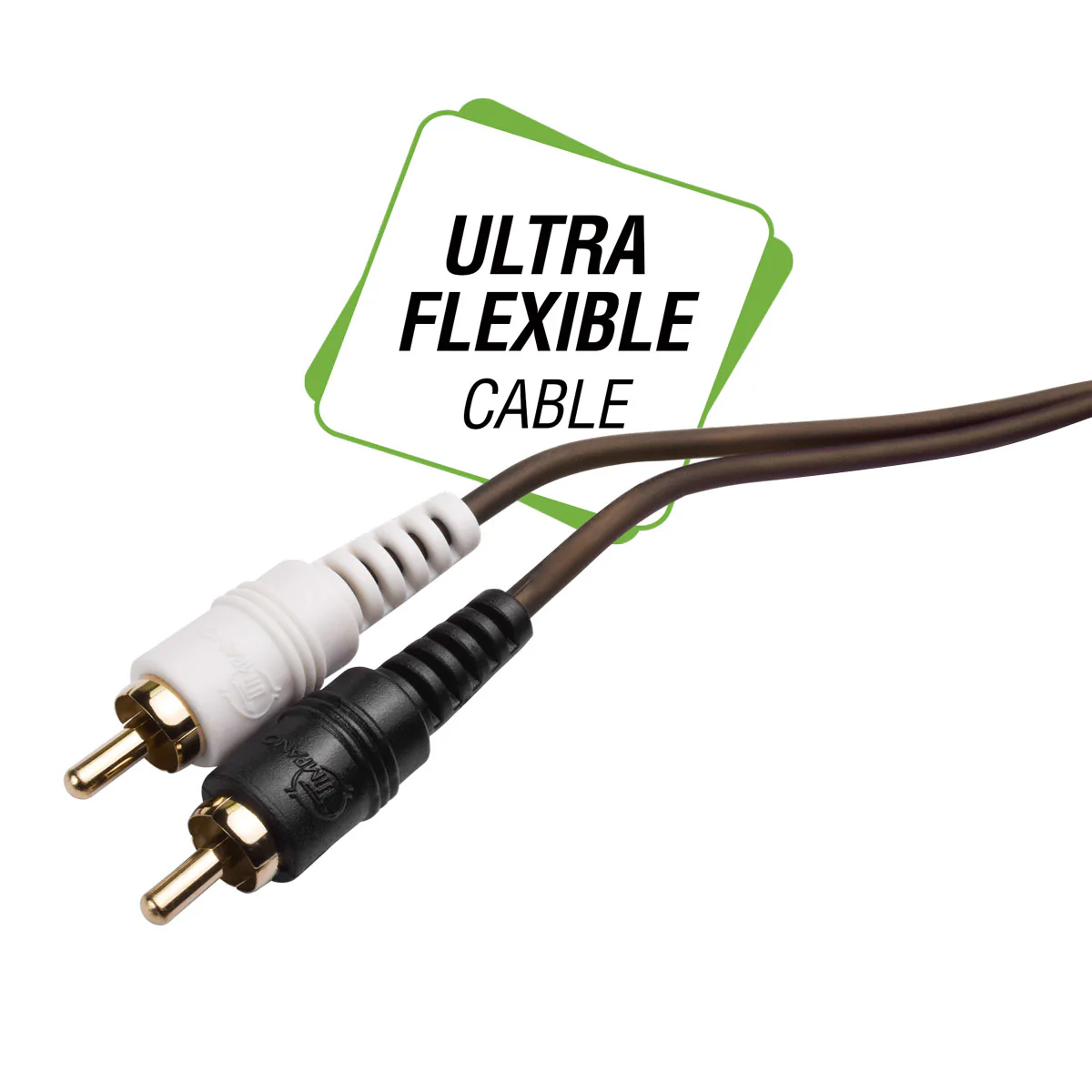

TPT-RCA X1F2M

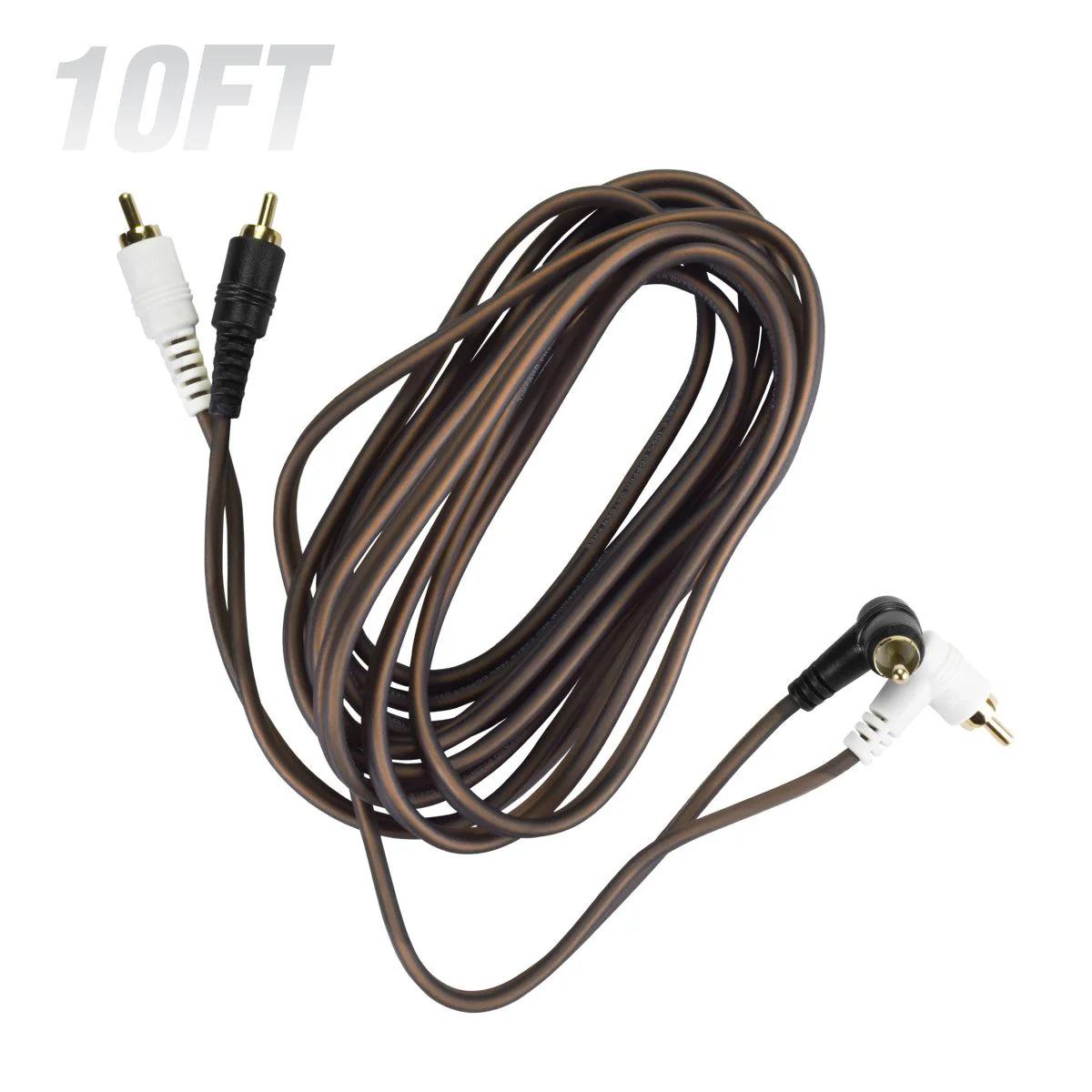

TPT-RCA X10FT

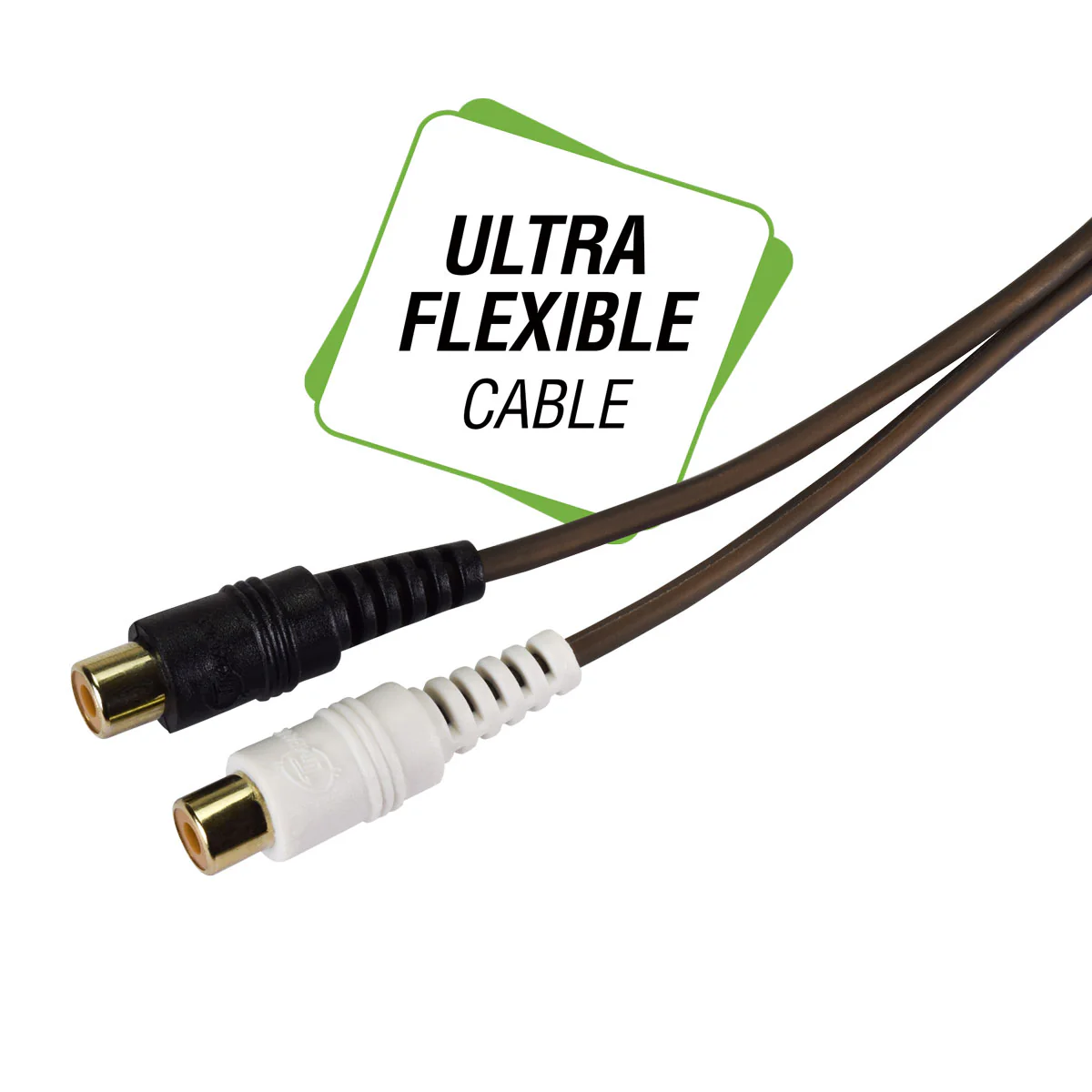

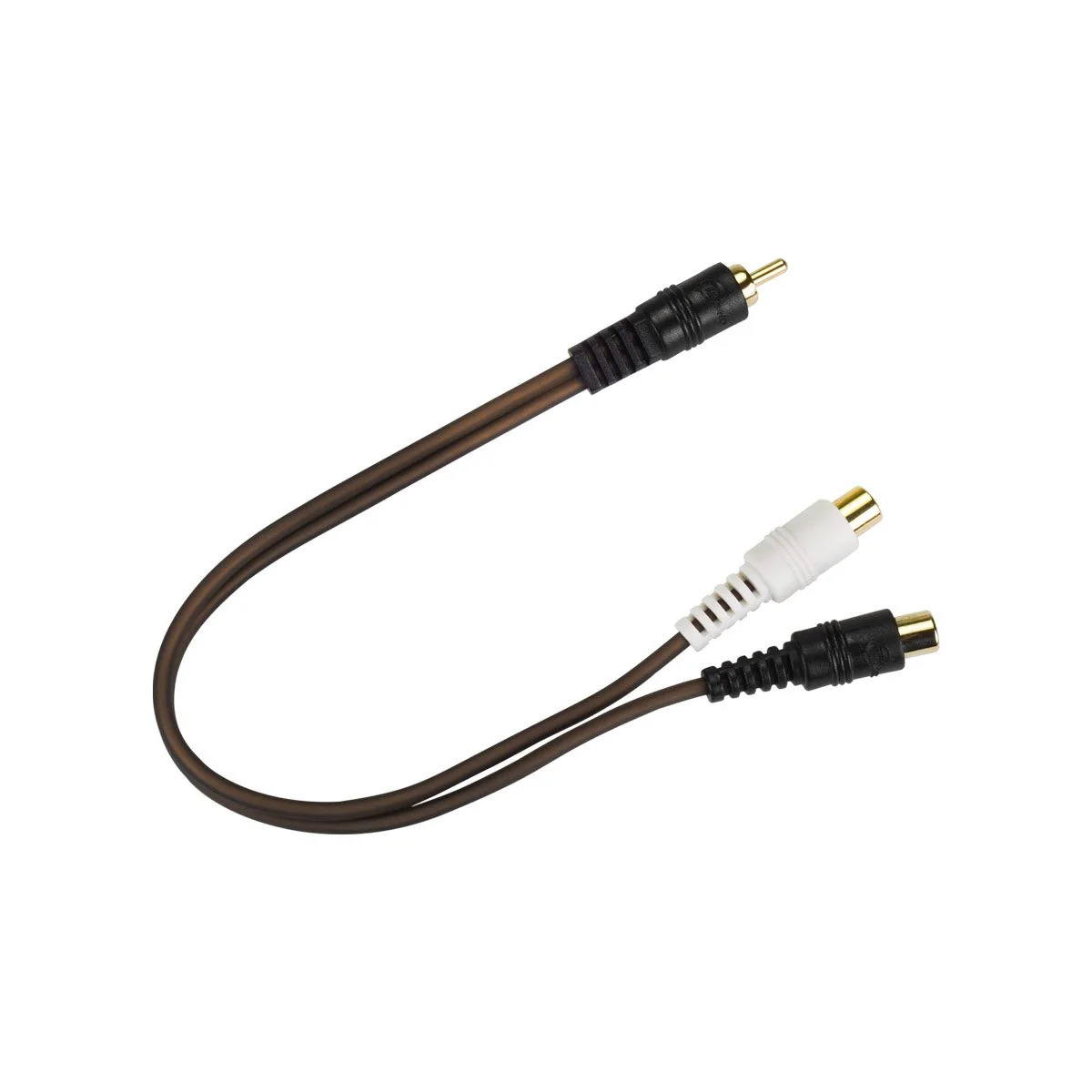

TPT-RCA X2F1M

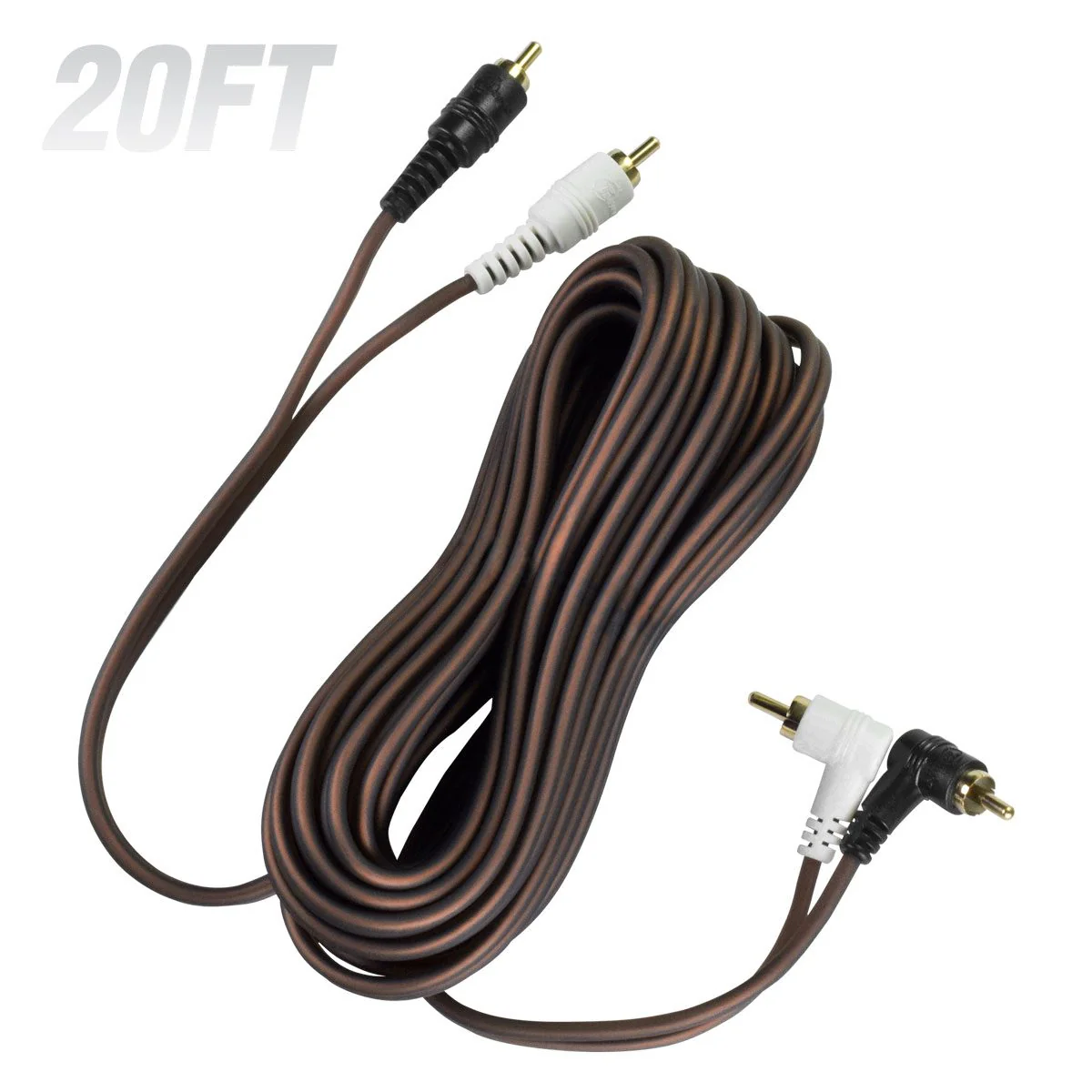

TPT-RCA X20FT

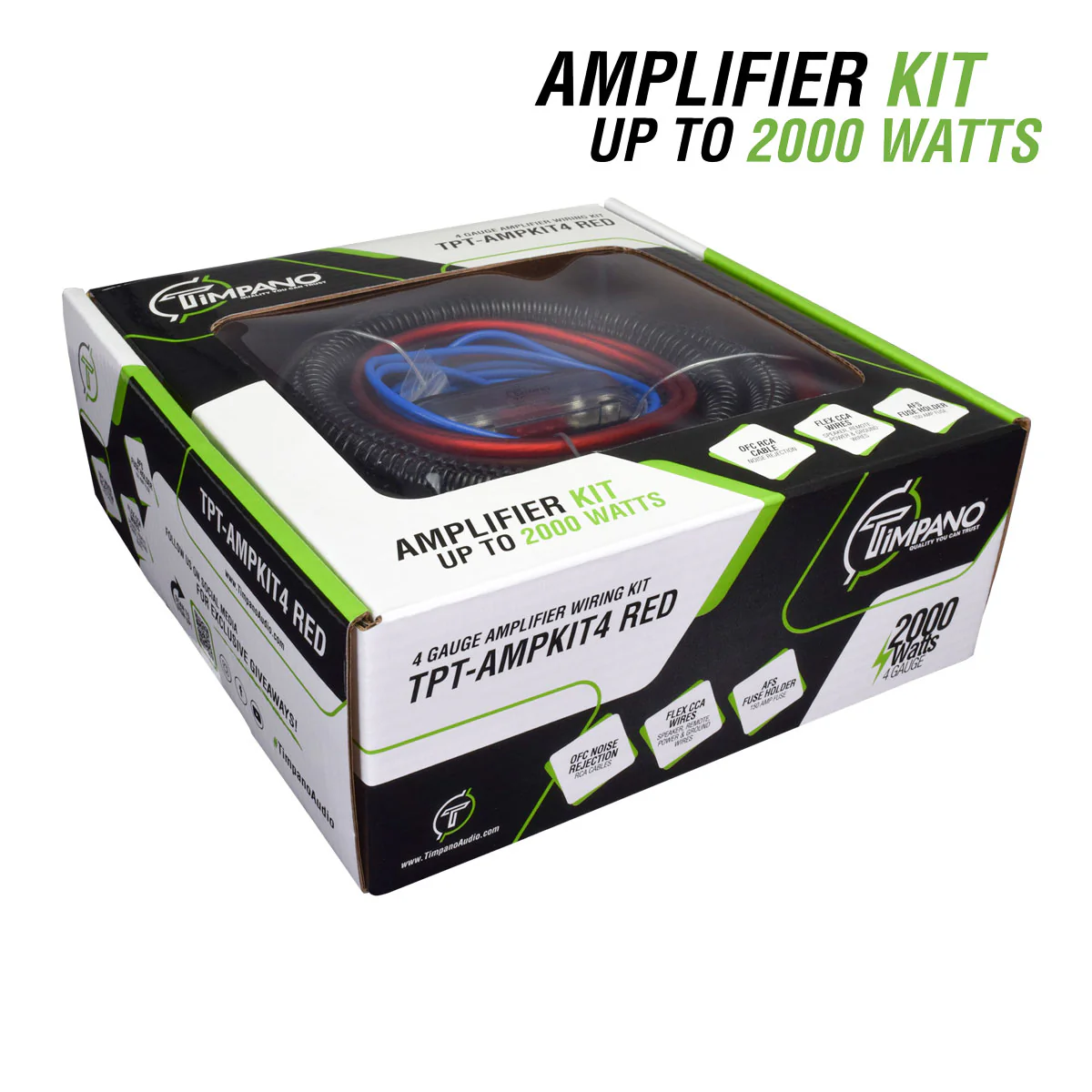

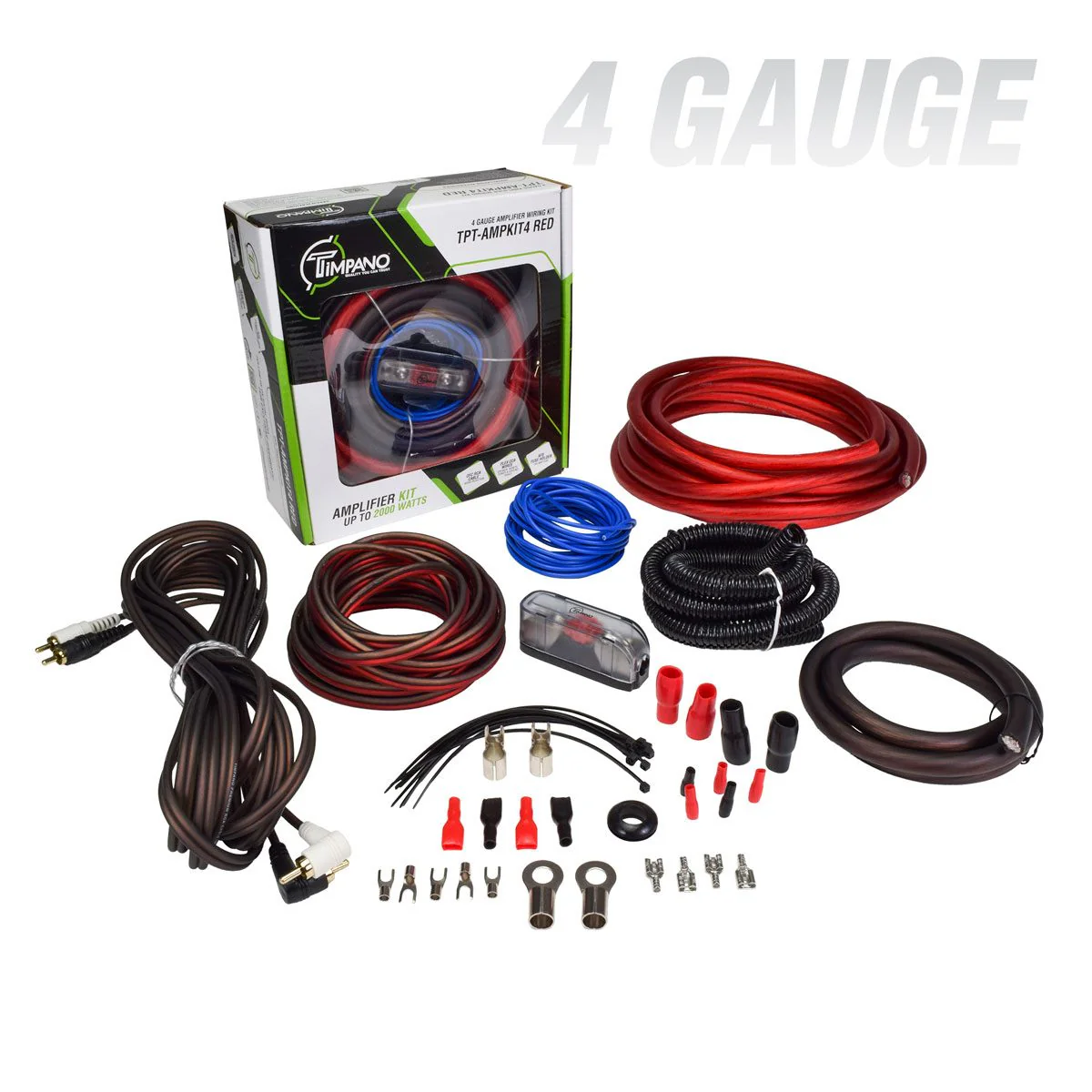

TPT-AMPKIT4 RED

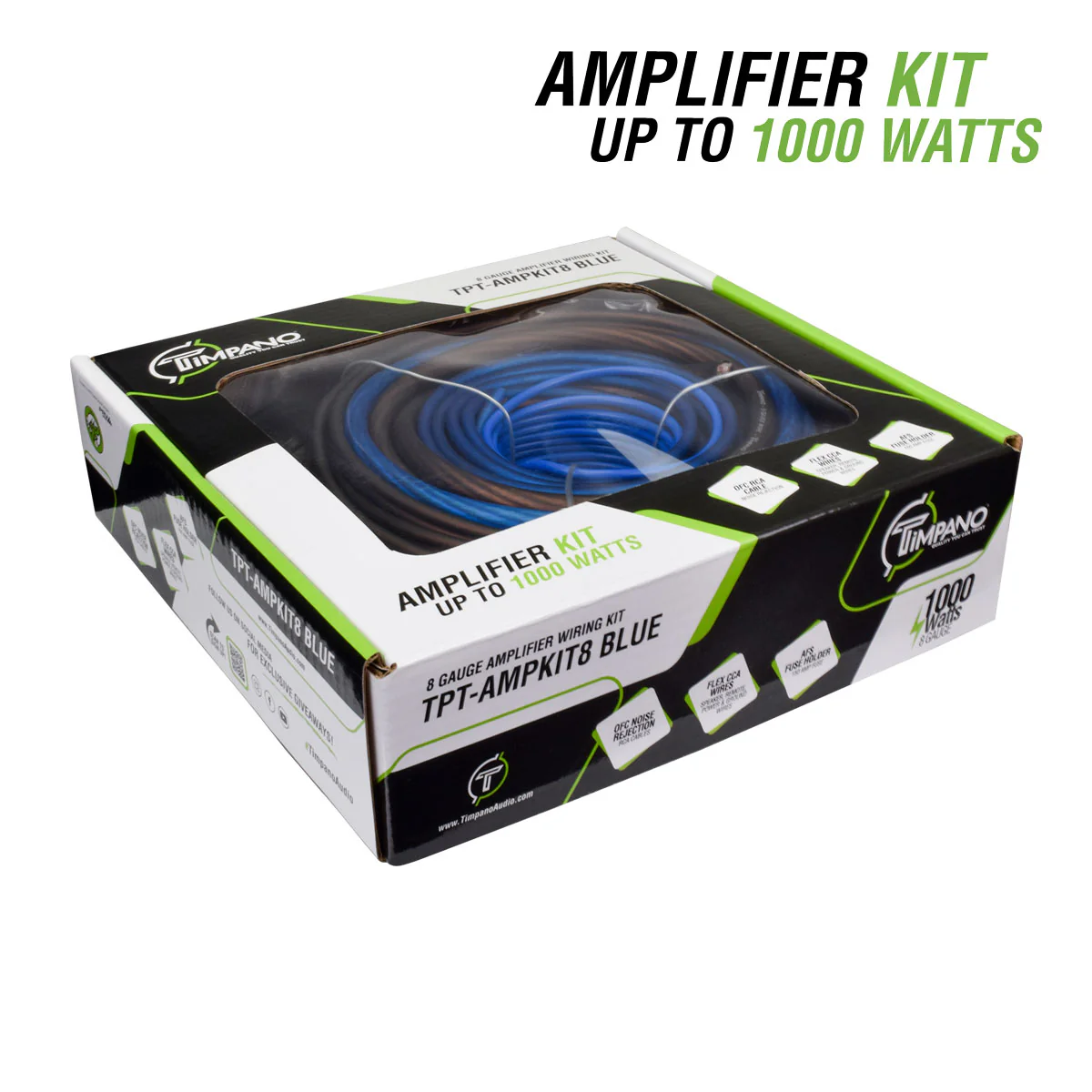

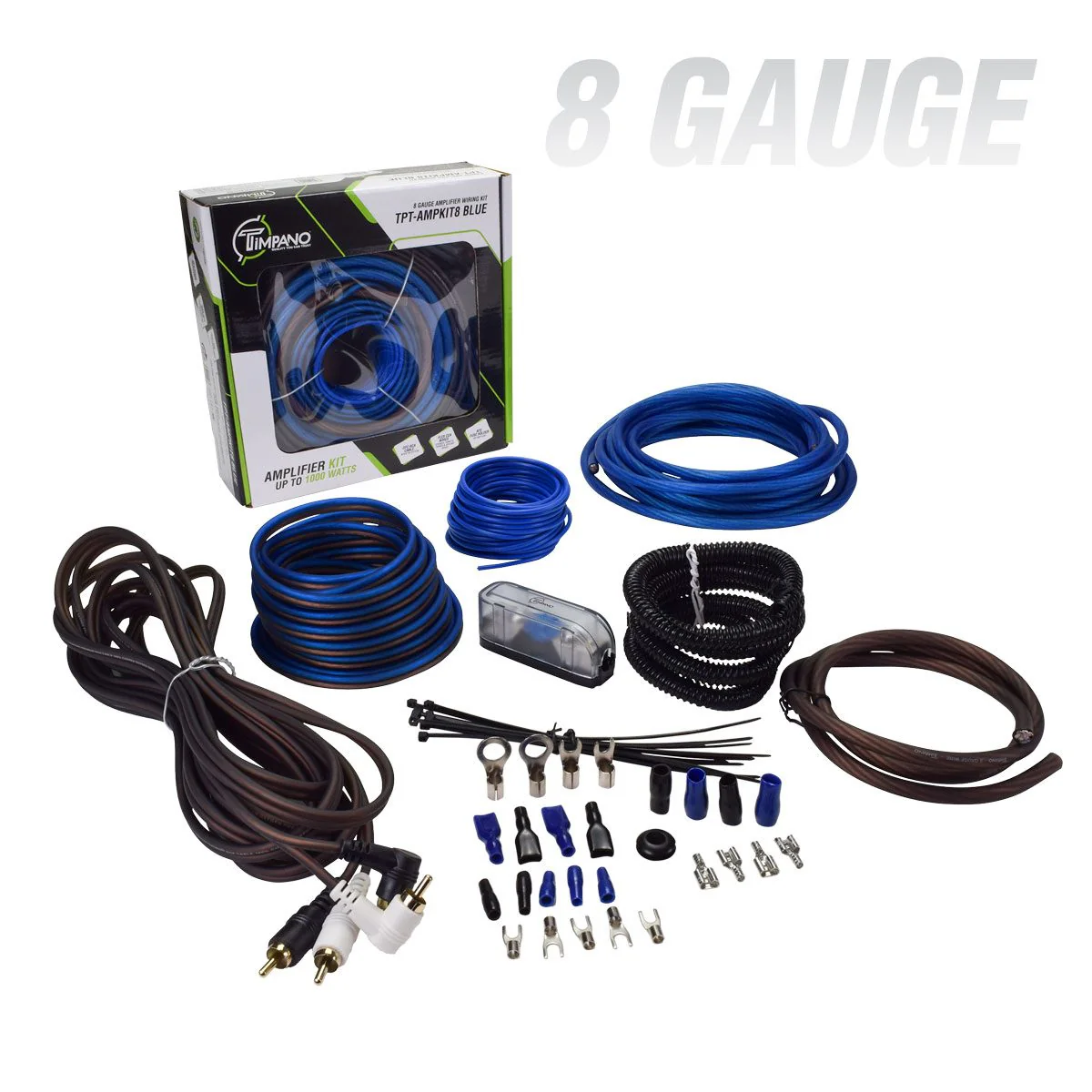

TPT-AMPKIT8 BLUE

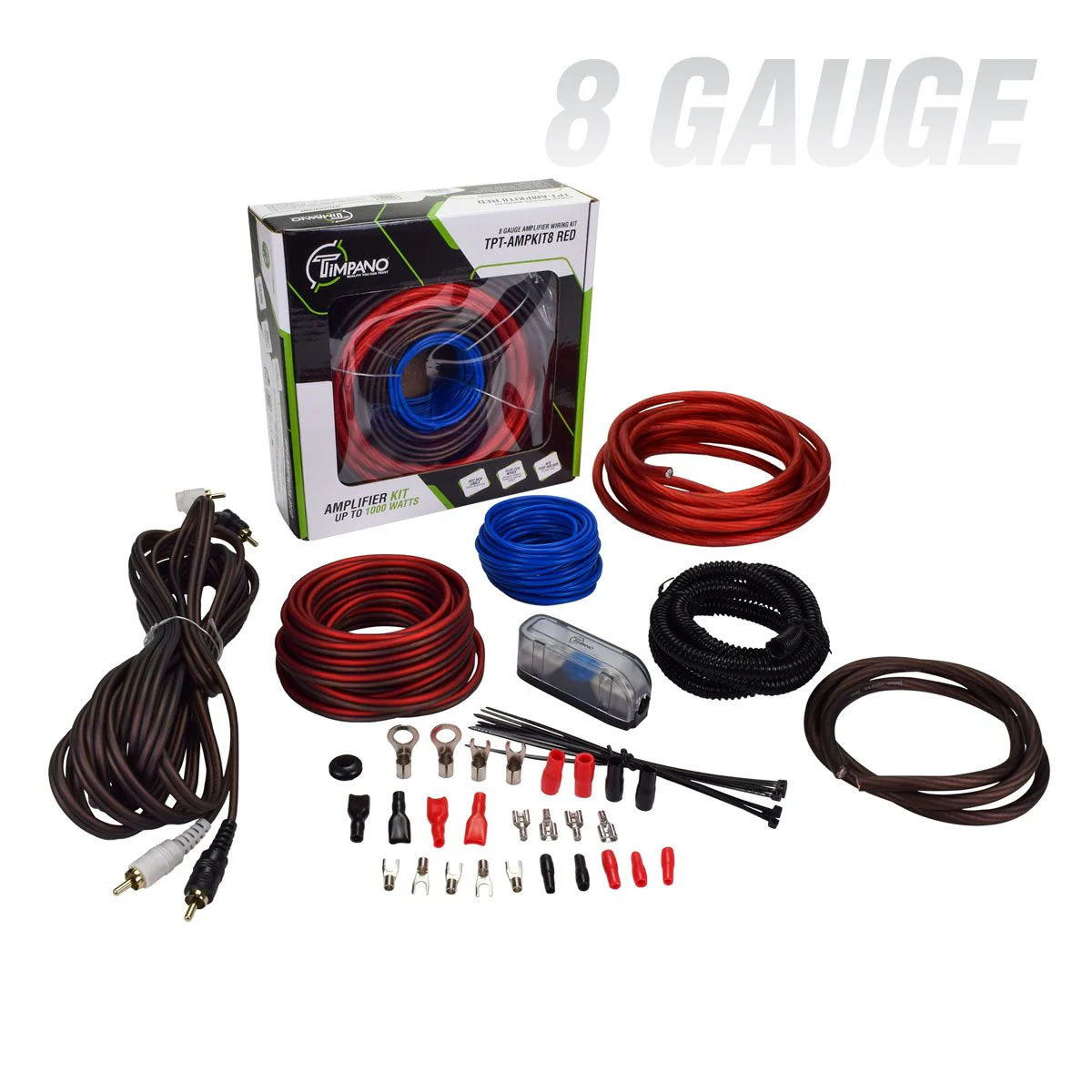

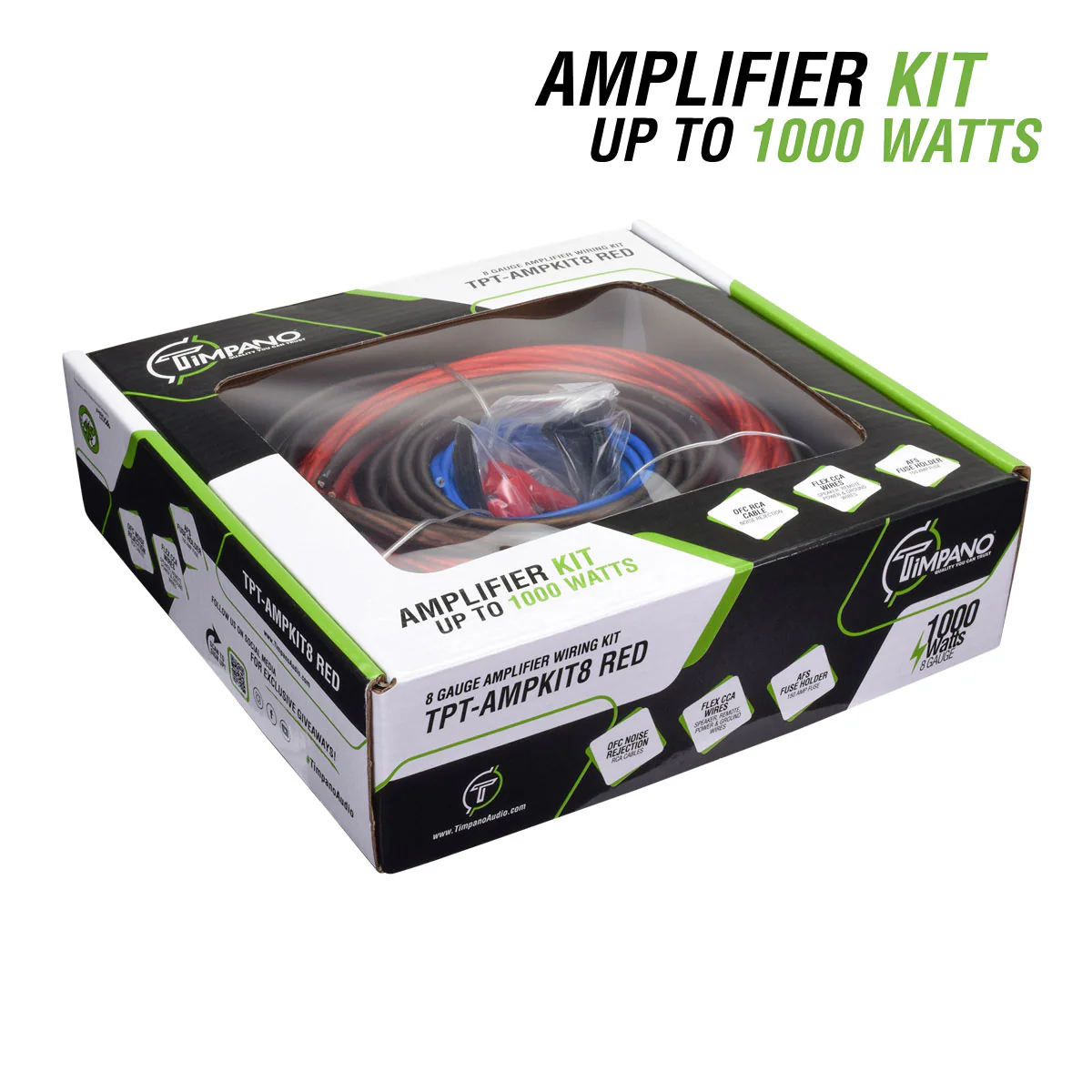

TPT-AMPKIT8 RED

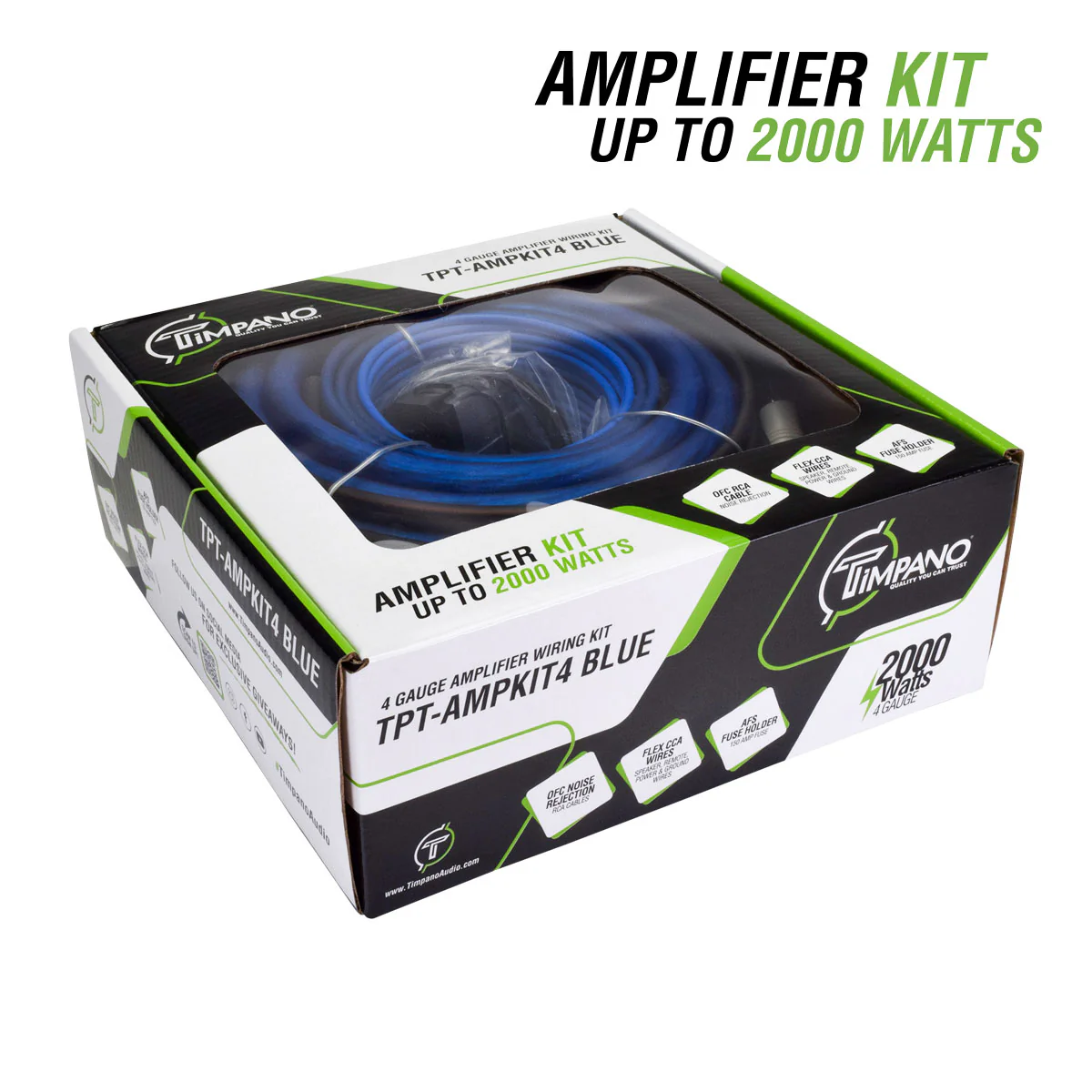

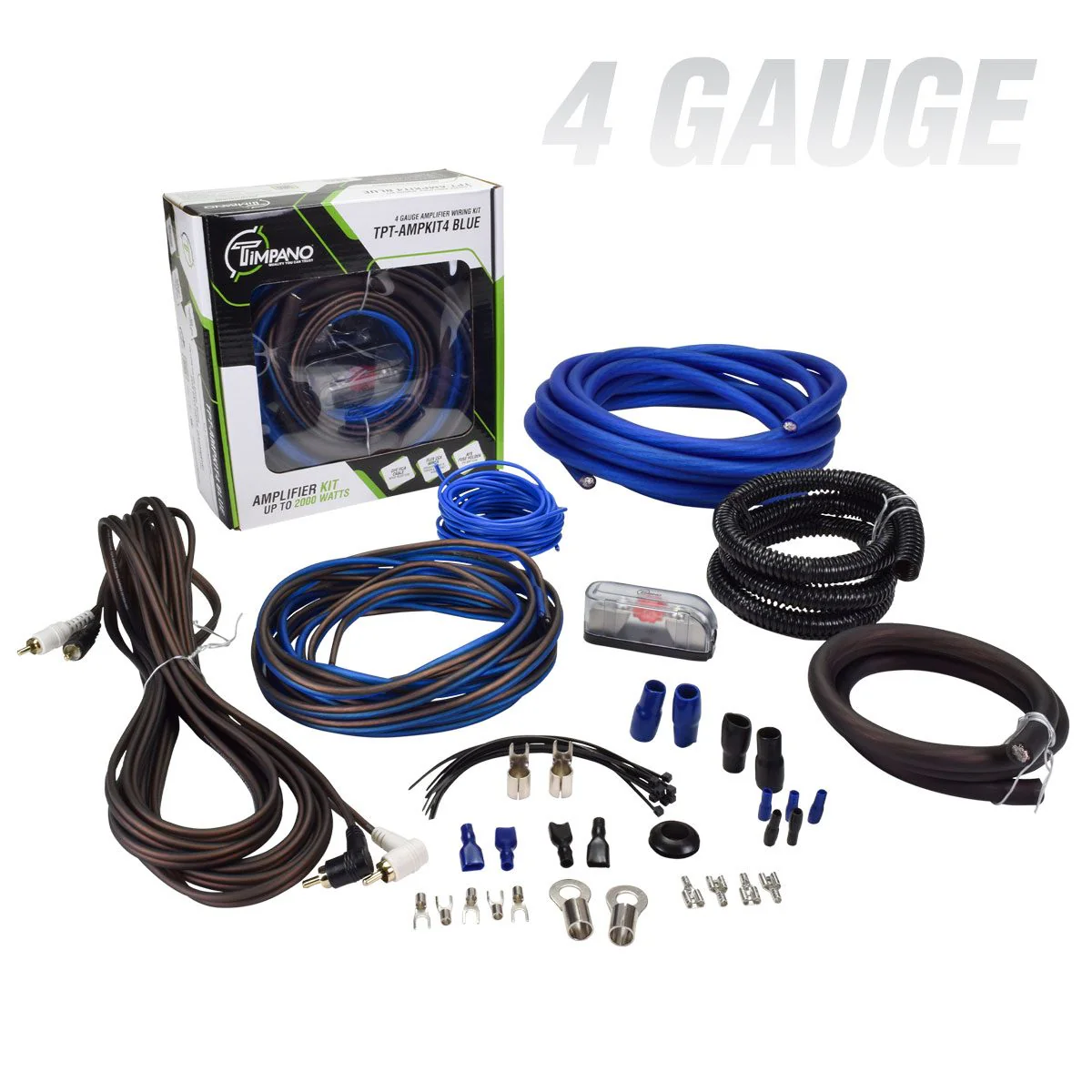

TPT-AMPKIT4 BLUE
